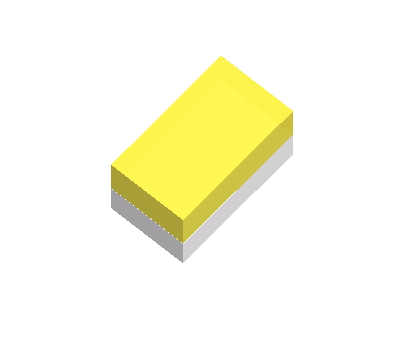

Phototransistor 0201 Package White-VS VW19S
2017-06-28
Dimension L x W x H, 0.65 * 0.375 * 0.35 mm
Electronic Optical Characteristics (at 2mA):
| Part Number | Emitted Color | C.C | Lens Color | Iv(mcd) | View Angle (2θ1/2) | VF(V) | |||
| X | Y | Min. | Typ. | Min. | Max. | ||||
| VS VW19S | White | 0.29 | 0.30 | Yellow | 36 | 63 | 120 | 2.5 | 2.9 |
|---|---|---|---|---|---|---|---|---|---|
Absolute Maximum Ratings (at Ta=25℃)
| PD(mW) | IFP(mA) | IF(mA) | Iron Solder (℃) | IR(uA)@VR=5V | Topr(℃) | Tstg(℃) |
| 110 | 100＊ | 25 | 350 ± 5 for 3 sec. | 50 | -40~+85 | -40~+90 |
